Nadex S540 coin counter, sorter, and coin roll wrapper: the complete business guide

A coin counter is an electronic machine that counts, sorts, and in many models wraps US coins by denomination automatically replacing a task that takes most cash-heavy businesses 20 to 45 minutes per shift when done by hand. For retailers, laundromats, vending operators, restaurants, and parking facilities, a commercial coin counter cuts shift-close time, eliminates manual counting errors, and produces bank-ready rolled output without a separate step. This guide covers how coin counters work, what separates a basic sorter from a full-wrapper machine, which specifications matter most, and why the Nadex S540 Coin Counter, Sorter and Coin Roll Wrapper is built for the demands of daily commercial coin handling.

Key takeaways

• Choose a machine that sorts, counts, and wraps in one pass a machine that only counts or only sorts requires additional manual steps that negate the time savings.

• Prioritize hopper capacity of at least 1,500 coins and counting speed of at least 250 CPM for any commercial daily use environment.

• Pair a coin counter with a bill counter for complete cash handling the Nadex S540 handles coin; the Nadex V1800 handles paper currency with UV, MG, and IR counterfeit detection.

• Use batch mode to program denomination stop counts this allows a single operator to run the machine while completing other close-out tasks simultaneously.

• Achieve return on investment within 2–4 weeks at a single location at $189.99, the S540 pays for itself within weeks through labor savings alone.

• Confirm all six US denominations are supported before purchasing machines that exclude half dollars and dollar coins are unsuitable for vending, parking, and transit operations.

What is a coin counter and how does it work?

A coin counter is a device that uses mechanical sorting gates and optical or weight-based sensors to separate coins by denomination and count them at speed. Most commercial-grade machines process coins by routing them through a sloped funnel hopper into a spinning disc or vibrating track. The track channels coins into denomination-specific slots based on diameter and thickness. A digital counter records each coin as it passes and displays a running total on an LCD or LED screen.

Higher-end machines like the Nadex S540 combine three functions in one unit: counting, sorting by denomination, and wrapping coins into preformed rolls ready for bank deposit. This three-in-one capability eliminates the need for separate equipment and reduces total time from coin collection to deposit bag.

The Federal Reserve distributes coins to depository institutions through a network of coin terminals across six denominations. For businesses that handle large coin volumes daily, having a machine calibrated to all six US denominations is a baseline requirement, not a premium feature.

What is the difference between a coin counter, coin sorter, and coin wrapper?

A coin counter measures total quantity and dollar value. It tells you how many coins you have and what they are worth. Entry-level coin counters return an aggregate total but leave coins unsorted.

A coin sorter separates coins by denomination into individual tubes or trays. It organizes rather than counts. Basic coin sorters suit low-volume use cases a cash drawer top-up or a coin jar cleanup but do not produce a verifiable dollar total.

A coin wrapper takes sorted coins and packs them into standard denomination rolls. In the United States, standard roll quantities are: 50 pennies, 40 nickels, 50 dimes, 40 quarters, 20 half dollars, and 25 dollar coins. Wrapped rolls are accepted directly by banks for deposit.

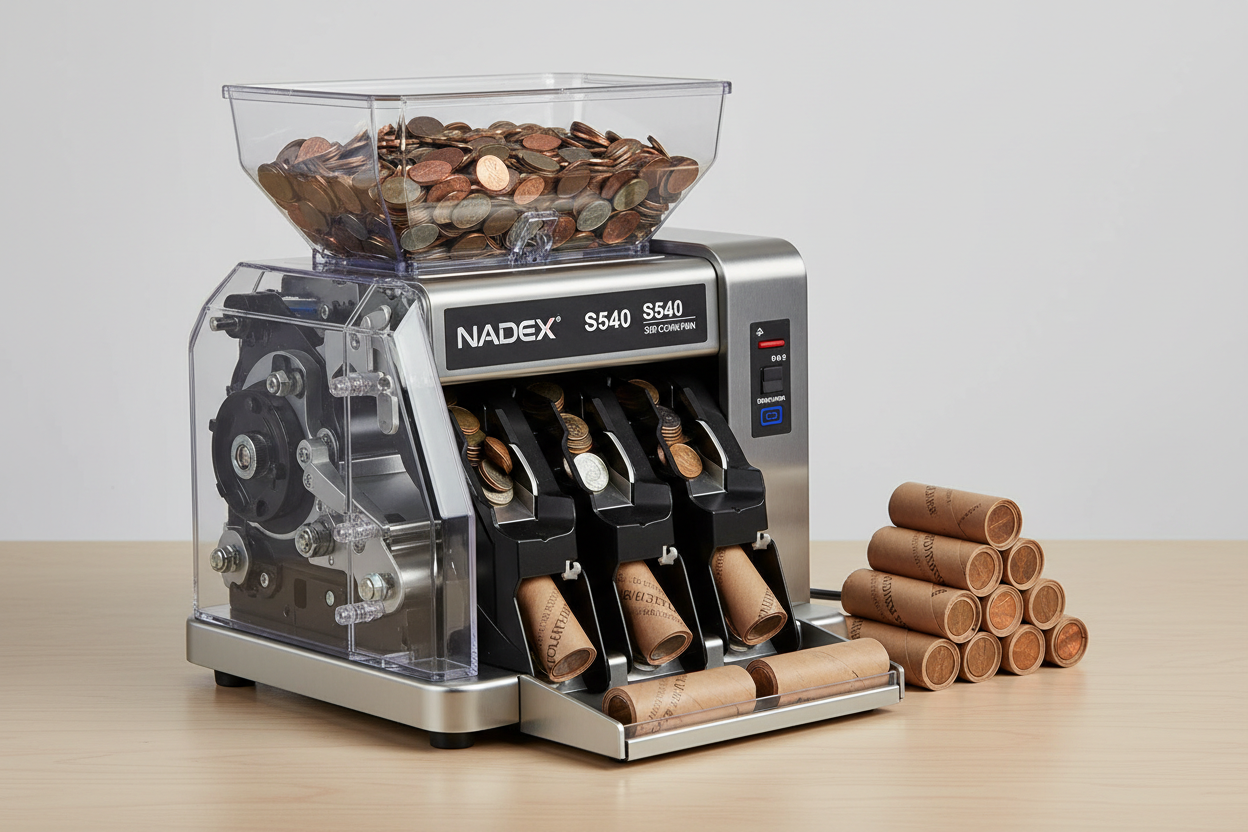

The Nadex S540 performs all three functions in one pass. Coins loaded into the 2,000-coin hopper are counted, sorted by denomination, and wrapped into preformed rolls at 300 coins per minute. This combined output is what separates a true commercial coin machine from a consumer-grade desk sorter. Browse the full Nadex Coins coin sorter range for models across different capacity and functionality levels.

Who needs a commercial coin counter?

Commercial coin counters are appropriate for any business that processes coin payments regularly or accumulates coins as part of daily cash handling.

Retail stores deal with coin change on every cash transaction. A convenience store running six to ten registers can accumulate several hundred dollars in coins per shift. Without a coin counter, reconciling the drawer at close requires manual counting that extends shift end by 15 to 30 minutes per register.

Laundromats and car washes operate predominantly coin-based equipment. At end of shift, the coin collection from each machine must be counted, verified, and rolled for deposit. A 300-CPM sorter and wrapper converts a 45-minute manual task into under 10 minutes.

Vending machine operators collect coins from multiple machines across multiple locations. Sorting and counting unsorted mixed coin collections without a machine is impractical at any volume above a handful of locations. A 2,000-coin hopper handles an entire route's collection in one or two loads.

Restaurants and bars receive coin change across multiple servers or registers. Coin errors compound during busy service periods. A coin counter eliminates denomination mix-ups and provides a verifiable count that protects against employee error or cash shrinkage.

Parking facilities and transit operators collect high volumes of quarters and dollar coins from automated payment systems and require fast, accurate counting with bank-ready rolled output.

For businesses in any of these categories, browse the Nadex Coins cash management range for the full range of cash handling equipment.

What specifications matter most when buying a coin counter?

Counting speed (coins per minute). Consumer-grade sorters process 150–200 CPM. Commercial machines start at 250 CPM. The Nadex S540 sorts and counts at 300 CPM fast enough to process a full laundromat collection or a restaurant's end-of-night coins in a single short session.

Hopper capacity. Consumer machines hold 200–500 coins. Commercial machines start at 1,500 coins. The S540 holds 2,000 coins in a single load sufficient for high-volume daily operations without mid-cycle interruption.

Wrapping capability. A machine that sorts but does not wrap requires a separate step to roll coins before deposit. The S540's integrated preformed roll system eliminates this step entirely. Coins exit already rolled and ready for deposit bags.

US denomination coverage. The machine must accurately sort all six primary US coin denominations: penny (1¢), nickel (5¢), dime (10¢), quarter (25¢), half dollar (50¢), and dollar coin ($1). Some lower-priced machines exclude half dollars and dollar coins.

Batch counting and preset functions. Batch mode programs the machine to stop sorting at a specific quantity for example, stopping at 40 quarters to complete one roll. This allows a single operator to run the machine while completing other close-out tasks. The U.S. Small Business Administration recommends systematic financial controls for small businesses batch counting is one of the simplest ways to enforce denomination accuracy at close.

Build quality and warranty. A commercial coin counter operates daily under demanding conditions. Machines with all-plastic internal mechanisms are unsuitable for commercial daily use. Nadex Coins provides US-based customer support, which is a meaningful differentiator when a machine needs service during a business-critical period.

How does the Nadex S540 compare to other coin counters on the market?

The S540 matches the Cassida C300 on speed and hopper capacity at a $25–$99 lower price point. The Royal Sovereign FS-44N is 12 CPM faster but holds only 800 coins and does not wrap for any operation depositing coins daily, the wrapping gap alone eliminates it from consideration. The Vevor options offer lower entry prices but do not wrap and cover fewer denominations, adding labor time that negates the cost saving within weeks.

The S540 is available in the Nadex Coins coin counter and sorter collection with free shipping included.

How to use the Nadex S540 coin counter step by step

Step 1 Load the hopper. Pour unsorted coins directly into the 2,000-coin hopper. No pre-sorting is required.

Step 2 Place preformed coin tubes. Insert denomination-specific preformed tubes into the designated slots. The S540 ships with preformed wrappers included. Each tube corresponds to a specific denomination and fills automatically.

Step 3 Set batch quantity (optional). Program a target quantity per denomination using the preset batch function if you want the machine to stop automatically when a full roll count is reached.

Step 4 Start the machine. Press the start button. The S540 begins sorting and counting at 300 CPM. The LCD display shows a running denomination count and total value.

Step 5 Remove completed rolls. When a denomination tube reaches the programmed fill count, remove the completed roll and place it in a deposit bag.

Step 6 Review the total. At the end of a run, the display shows total coin value counted by denomination. Cross-reference against your register count for reconciliation.

What is the cost of manual coin counting for a small business?

A single employee counting, sorting, and rolling coins manually typically spends 25–45 minutes per shift. At a $16 per hour wage rate, this is $6.67 to $12.00 in labor cost per shift, per location.

For a business operating 365 days per year, that is $2,435 to $4,380 in annual labor cost attributable solely to manual coin handling before accounting for counting errors, short deposits, or manager time spent reconciling discrepancies.

The Nadex S540 at $189.99 achieves full return on investment within 2 to 4 weeks at a single location. According to the IRS recordkeeping guidelines for small businesses, businesses must maintain accurate records of all financial transactions. A coin counter that provides denomination-level totals supports this requirement and creates a defensible audit trail for cash transactions.

Does a coin counter work with a bill counter?

Yes. A coin counter and a bill counter are complementary pieces of equipment. A coin counter handles loose change, sorted coin collections, and coin roll preparation. A bill counter handles paper currency, batch counting, and in models with counterfeit detection UV, MG, and IR verification of each bill.

The Nadex V1800 counts up to 1,000 bills per minute and detects counterfeit currency using triple-layer UV, MG, and IR detection. It pairs with the S540 as a complete cash handling station for businesses managing both coin and paper currency. Browse the Nadex Coins bill counter range for all available models.

Is a coin counter the same as a coin sorter?

No. A coin counter measures quantity and total value. A coin sorter separates coins by denomination into distinct tubes or trays. Many machines marketed as coin sorters do not count they organize. Many marketed as coin counters do not sort they total.

The Nadex S540 sorts, counts, and wraps simultaneously all three functions in a single pass. This is the standard cash-handling businesses should require from a commercial machine. For businesses managing complete till setups, the Nadex Coins cash register range covers point-of-sale register options, and the Nadex Coins full product range provides a complete view of available cash handling equipment. For cash management guides and tips, visit the Nadex Coins blog.

Frequently asked questions

1. What is the best coin counter for a small business?

The best coin counter for a small business sorts, counts, and wraps coins in a single pass at 250 CPM or faster, with a hopper capacity of at least 1,500 coins. The Nadex S540 meets all three criteria at $189.99 with free shipping and handles all six US denominations including half dollars and dollar coins.

2. How accurate are coin counters?

Commercial coin counters are accurate to 99.9% or higher under normal operating conditions when coins are clean, not heavily worn, and loaded correctly. Accuracy drops when coins are dirty, bent, or when foreign coins or tokens are mixed into the hopper. Cleaning the sorting track regularly and removing non-US coins before loading maintains peak accuracy.

3. Can a coin counter handle dollar coins and half dollars?

Yes, but not all models support all six US denominations. Dollar coins and half dollars are wider and thicker and require specific sorting gate widths. The Nadex S540 is calibrated to handle all six US coin denominations. Always confirm denomination coverage before purchasing for vending, parking, or transit operations.

4. How long does it take to count $100 in coins with the Nadex S540?

At 300 coins per minute, processing $100 in quarters (400 coins) takes approximately 1 minute 20 seconds of machine time, plus roll removal and setup time of 2–3 minutes. A typical daily coin collection for a single retail register can be fully counted, sorted, and wrapped in under 10 minutes.

5. Do I need to pre-sort coins before using a coin counter?

No. The Nadex S540 accepts unsorted mixed-denomination coins directly in the hopper. Pre-sorting is unnecessary and negates the time-saving purpose of the machine.

6. What is the difference between a coin counter and a cash register?

A coin counter processes bulk coin collections it sorts, counts, and wraps. A cash register is a point-of-sale device that handles individual transactions, tracks sales, prints receipts, and manages the cash drawer in real time. The Nadex CR360 Cash Register handles transaction management; the S540 handles end-of-shift coin reconciliation and deposit preparation. The Bureau of Engraving and Printing notes that physical currency handling at the business level requires equipment calibrated to genuine US currency security standards both the V1800 and S540 are calibrated for US currency as standard.

Order the Nadex S540 at $189.99 sorts, counts, and wraps all six US coin denominations, 300 CPM, 2,000-coin hopper, free shipping. Pair it with the Nadex V1800 bill counter for a complete cash handling station.
