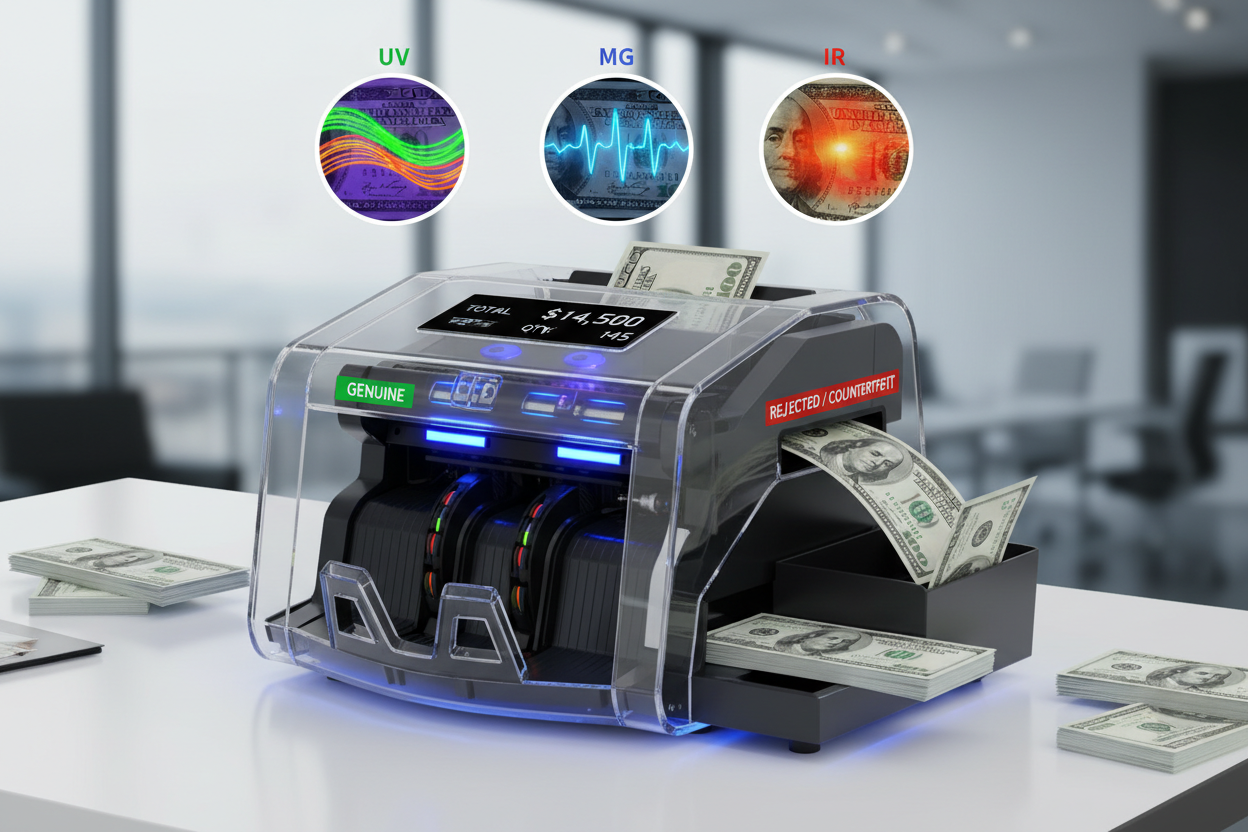

What do UV, MG, and IR counterfeit detection methods actually check?

UV, MG, and IR are three independent sensor layers used in professional bill counters to verify genuine US currency. UV checks fluorescent security threads, MG reads the magnetic ink applied during printing, and IR measures the infrared light absorption profile of authentic banknote ink. Running all three simultaneously means a counterfeit must defeat three separate physical verification systems at once each checking a different property that cannot be replicated by scanning, photocopying, or standard commercial printing.

Key takeaways

• UV detection checks fluorescent security threads it catches most low-grade counterfeits but misses washed-bill fakes where the original thread survives the bleaching process.

• MG detection reads the ferromagnetic ink applied during BEP intaglio printing it catches non-magnetic ink reprints and is significantly harder to defeat than UV alone.

• IR detection measures the infrared absorption profile of genuine BEP ink the hardest layer to replicate and the one that catches digital reprints and sophisticated washed-bill refakes.

• Running all three simultaneously in a bill counter means a counterfeit must defeat three independent physical checks UV-only or UV/MG-only machines leave gaps that IR closes.

• A counterfeit pen only checks paper composition it is a supplementary tool at the register, not a substitute for automated multi-layer detection.

• For businesses regularly accepting $50 and $100 notes, triple-layer UV, MG, and IR detection is not a premium feature it is the standard level of protection the denomination risk requires.

Why is one counterfeit detection method not enough?

A single detection method leaves exploitable gaps that more sophisticated fakes are specifically designed to pass. The U.S. Secret Service identifies multi-method verification as the most reliable approach to automated counterfeit detection not because any single layer is weak, but because each layer is designed to catch a different class of fake.

The counterfeit pen most small businesses keep at the register is the clearest example of single-method limitation. It uses an iodine solution that reacts with starch in wood-pulp paper genuine US currency is printed on cotton-linen stock that contains no starch, so the pen produces a gold or amber mark on a real bill and a dark mark on a fake printed on regular paper. That single test catches bills printed on the wrong substrate. It does not check magnetic ink, infrared absorption, or UV security features. A counterfeit printed on bleached genuine currency paper a technique the Secret Service has documented in circulating fakes passes the pen entirely.

UV-only bill counters catch more than a pen, but face a similar bypass problem. Counterfeiters who wash genuine low-denomination notes and reprint higher values retain the original security thread. UV detection sees the thread, reads the fluorescence, and passes the bill. MG and IR detect the reprinted ink and flag it UV alone does not.

Knowing what each layer checks lets you evaluate whether a bill counter provides complete verification or a partial screen.

How does UV counterfeit detection work?

UV detection shines ultraviolet light onto each bill and checks for the correct fluorescent response from embedded security features. Genuine US currency contains a security thread a thin embedded strip that glows a denomination-specific color under UV light. According to the U.S. currency denominations guide, the $5 note glows blue, the $10 note glows orange, the $20 note glows green, the $50 note glows yellow, and the $100 note glows pink. The thread position also varies by denomination, providing a second verification point beyond color alone.

A bill counter UV sensor scans for that fluorescence automatically as each bill feeds through. If the response is absent, positioned incorrectly, or the wrong color for the denomination being counted, the machine flags the bill and stops the count. UV detection reliably catches most low-grade counterfeits printed on plain paper, photocopy stock, or standard commercial substrates that lack the embedded thread entirely.

The limitation is targeted bypass. Washed-bill counterfeits genuine low-denomination notes chemically bleached and reprinted as higher denominations retain the original security thread. The thread glows the correct color for the original denomination, but that denomination does not match the face value printed on the bill. UV sensors reading only for the presence and color of fluorescence can miss this mismatch without denomination-aware cross-checking. This is the gap MG detection is specifically positioned to close.

For businesses primarily handling $1, $5, and $10 notes, UV detection alone carries lower risk. For any business regularly accepting $50 and $100 notes restaurants, grocery stores, retail shops, and any cash-heavy operation UV-only is an insufficient single line of defense.

How does MG counterfeit detection work?

Magnetic detection checks the ink rather than embedded strips or threads. The Bureau of Engraving and Printing applies ferromagnetic ink to specific areas of every genuine note during the intaglio printing process the portrait, the Federal Reserve seal, the large denomination numerals, and elements of the serial number. MG sensors in a bill counter read the magnetic properties of that ink as each bill passes through the sensor zone.

A fake bill printed with standard toner, inkjet ink, or commercial offset printing ink does not carry the correct magnetic signature. The MG sensor detects the absence of magnetic properties, an incorrect distribution pattern, or insufficient magnetic strength, and flags the bill. Because ferromagnetic ink is a fundamental part of the BEP intaglio process not a feature that can be approximated with a marker or aftermarket application MG detection is substantially harder to defeat than UV alone.

The U.S. Currency Education Program identifies magnetic ink as one of the primary embedded security features of US currency, specifically noting that its physical properties are tied to the intaglio printing method used exclusively by the Bureau of Engraving and Printing. That process creates raised ink with a tactile texture the reason genuine currency feels different from a photocopy and it is the magnetic component of that ink that MG sensors read.

Most professional-grade bill counters include both UV and MG. A machine with UV and MG covers the two most common classes of circulating fakes: low-grade plain-paper counterfeits caught by UV, and non-magnetic ink reprints caught by MG. The remaining gap sophisticated fakes using approximated inks that partially replicate magnetic properties is what IR detection addresses.

How does IR counterfeit detection work?

Infrared detection is the hardest layer for counterfeiters to replicate and the most effective at catching sophisticated fakes. Genuine US currency ink absorbs and reflects infrared light in a specific pattern that varies by denomination and print region. IR sensors in a bill counter emit infrared light and measure the absorption profile of each bill as it passes through checking not just whether the bill reflects IR correctly, but whether the absorption pattern matches the expected profile for that denomination.

A bill printed with standard commercial inks even high-quality reproduction inks that approximate the visual and magnetic properties of genuine currency produces a different IR absorption profile than authentic BEP ink. The IR sensor identifies that mismatch and flags the bill. Because the IR profile is determined by the specific chemical composition of BEP printing ink and cannot be reproduced by scanning and reprinting a genuine note, IR detection catches a class of sophisticated counterfeits that UV and MG checks can miss.

This is the layer that separates bill counters marketed as "triple-layer" or "full detection" from those offering only UV and MG. On the Nadex V1800, all three sensors run simultaneously on every bill during the count UV, MG, and IR check each note in under a second without slowing the count rate or requiring a separate verification pass.

What does each detection method check and catch?

The table reflects why layering matters in practice. A washed-bill counterfeit passes UV but fails MG and IR. A non-magnetic toner fake may pass UV but fails MG. A sophisticated digital reprint using approximated inks may partially pass UV and MG but fails IR. Each layer is a backstop for the others.

Which businesses face the highest risk from counterfeits that bypass UV-only detection?

Businesses handling high-denomination bills frequently carry the greatest exposure. U.S. Secret Service data on circulating counterfeits consistently shows $20, $50, and $100 notes as the most commonly counterfeited denominations and the most sophisticated fakes disproportionately target those denominations because higher face values make each successful fake more profitable.

Retail shops, restaurants, grocery stores, and entertainment venues accepting cash transactions throughout the day face continuous exposure. A single shift across a busy register can involve hundreds of cash transactions the volume makes manual inspection impractical and counterfeit-pen reliance insufficient. Bank tellers, credit unions, and cash-heavy service businesses face the same exposure at greater scale.

Businesses that primarily accept $1, $5, and $10 notes face lower counterfeit risk from the UV bypass gap. Businesses regularly accepting $50 and $100 notes face meaningful exposure from washed-bill and digital-reprint counterfeits that UV-only detection does not catch. Triple-layer UV, MG, and IR simultaneous detection in a bill counter closes that exposure at the machine level without requiring additional staff steps. The U.S. Small Business Administration offers free workshops on cash handling controls and financial process fundamentals for businesses building or reviewing their cash management procedures.

Browse the Nadex Coins bill counter range to compare models across detection layers, counting speed, and hopper capacity. For point-of-sale detection at the register during individual transactions, the Nadex Coins cash management range includes standalone and pass-through counterfeit detector options for checking high-denomination bills before they enter the drawer. For higher-volume operations that count unsorted deposits, the Nadex Coins mixed-denomination money counter lineup includes models that handle multiple denominations in a single pass.

How does a bill counter run UV, MG, and IR simultaneously without slowing the count?

Each detection method uses a dedicated sensor positioned along the bill path inside the machine. As a bill feeds through, it passes all three sensor zones in sequence a process that takes under one second per note. The machine processes all three sensor readings simultaneously and stops immediately if any sensor flags an anomaly. No separate verification step is required and no measurable time is added to the count rate.

On the Nadex V1800, the triple-layer detection runs at the machine full 1,000 bills per minute every bill is checked across all three layers during a normal count cycle. The dual TFT display shifts to red if any sensor flags a suspect note, giving staff an immediate visual alert without needing to monitor the bill counter throughout the count. For cash management tips and product comparisons, visit the Nadex Coins blog.

What is the role of a counterfeit pen alongside automated detection?

A counterfeit pen is a useful first-line supplement at the point of sale, not a substitute for automated multi-layer detection. The pen iodine solution checks paper composition only it confirms whether a bill is printed on cotton-linen stock rather than wood-pulp paper. It does not check magnetic ink, infrared absorption, UV security threads, or any of the other embedded features that automated sensors verify.

The pen is effective at catching the most basic fakes bills printed on regular printer paper or photocopy stock. It passes washed-bill counterfeits, polymer fakes, and any counterfeit printed on genuine bleached currency paper. For businesses using a pen as their only counterfeit check, that gap is significant at high-denomination transactions.

The correct approach, consistent with U.S. Secret Service guidance, is to use automated multi-layer detection as the primary verification method and treat the pen as a supplementary quick check at the register for individual transactions during the day not as a replacement for a bill counter that checks UV, MG, and IR on every bill counted. Businesses that also sort and count coins alongside cash can browse the Nadex Coins coin sorter range for complementary cash handling equipment.

Frequently asked questions

1. Is UV detection enough for a small business?

UV detection catches most low-grade counterfeits but misses fakes made from washed genuine currency bills where the original security thread survives the bleaching process. For businesses regularly handling $50 and $100 notes, UV alone leaves a meaningful gap. MG and IR add the verification layers needed to catch those more sophisticated fakes. The Nadex Coins full bill counter lineup lists which models include triple-layer detection.

2. What does a counterfeit pen actually check?

A counterfeit pen uses an iodine solution that reacts with starch in wood-pulp paper. Genuine US currency is printed on cotton-linen paper containing no starch, so the pen produces a gold or amber mark on a real bill. It only checks paper composition it does not detect magnetic ink, infrared properties, or UV security features. It is a basic supplementary check, not a complete verification method.

3. Do all bill counters include UV, MG, and IR detection?

No. Many entry-level bill counters include UV only. Mid-range machines typically add MG. Triple-layer UV, MG, and IR simultaneous detection is a feature of professional-grade machines. When evaluating any counter, check the spec sheet for all three methods explicitly marketing terms like "advanced detection" do not always confirm all three layers are present.

4. How does a bill counter run UV, MG, and IR at the same time?

Each detection method uses a separate dedicated sensor along the bill path. As a bill feeds through, it passes all three sensor zones in under a second. The machine processes all three readings simultaneously and stops immediately if any sensor flags an anomaly adding no measurable time to the count rate.

5. What should I do if my bill counter flags a counterfeit?

Set the flagged bill aside immediately do not return it to circulation. The U.S. Secret Service recommends surrendering suspect notes to your bank or local law enforcement for official verification. Your bank can submit it through the proper reporting channel. The U.S. Currency Education Program covers all current security features by denomination for manual inspection of flagged bills.

Browse the complete Nadex Coins bill counter range to compare models with triple-layer detection across speed, hopper capacity, and price.
